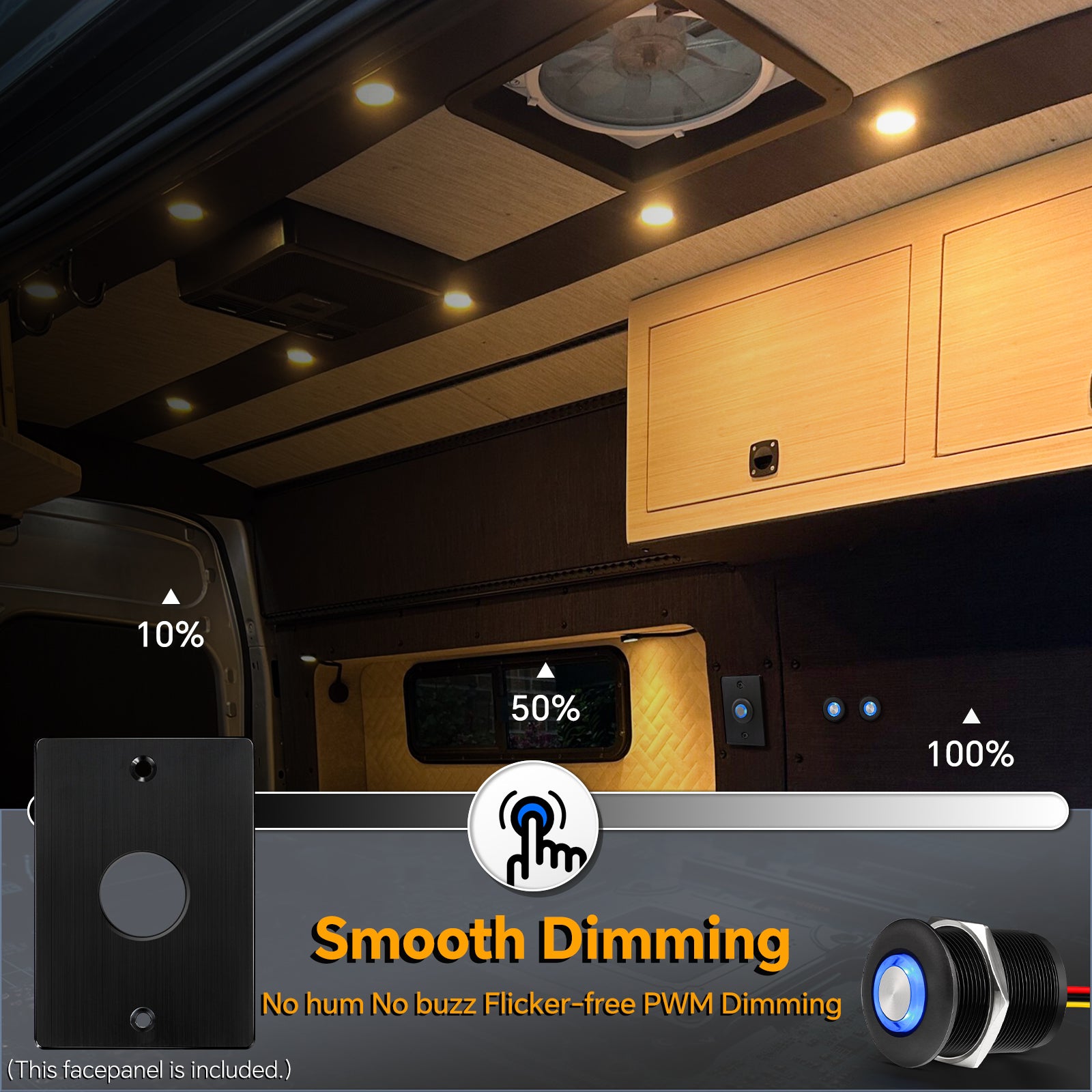

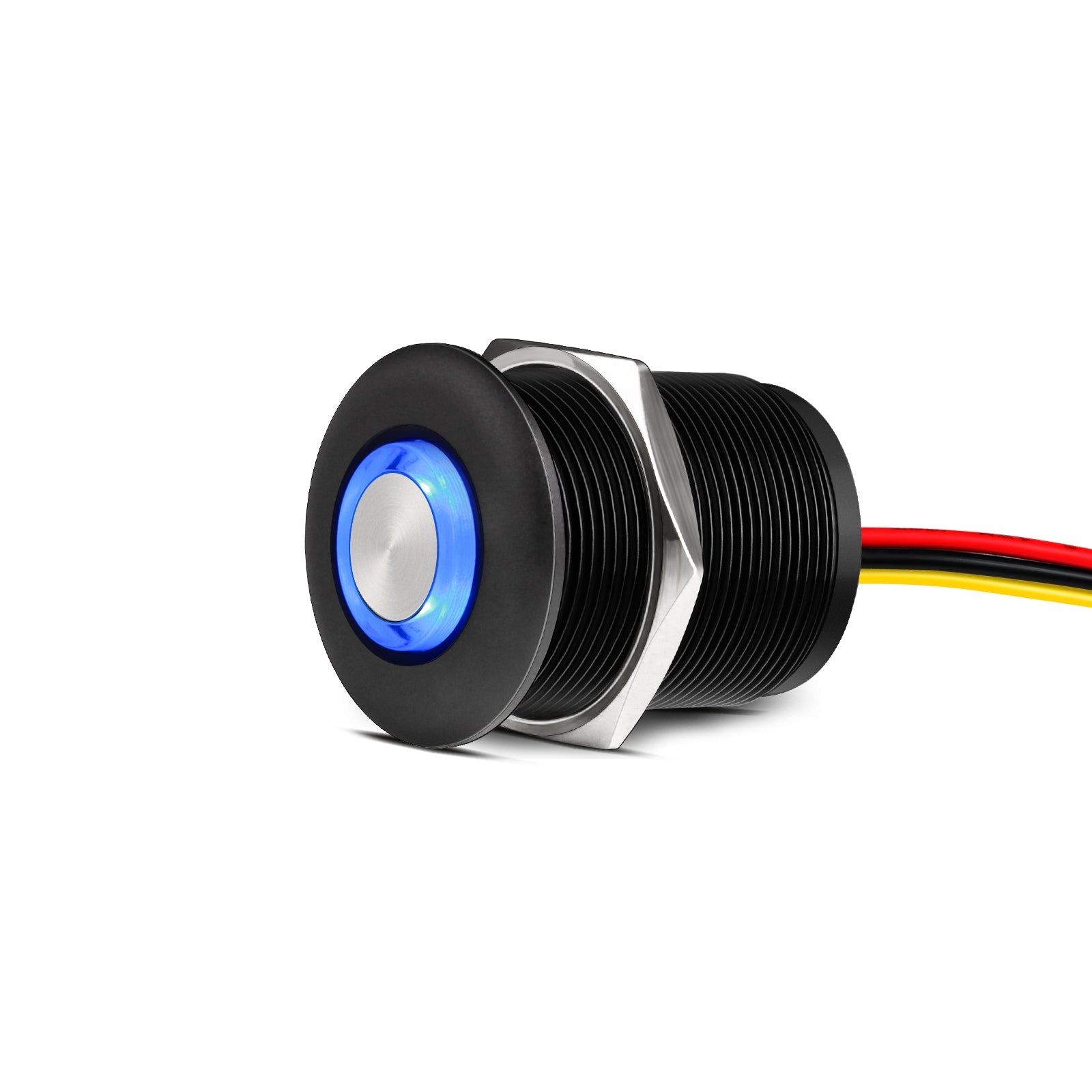

This intuitive dimmer switch features a responsive push-button control—short press to turn the light on/off, press and hold to smoothly adjust brightness (3%-100% flicker-free dimming). A subtle blue backlight ensures easy location in the dark, while brightness memory retains your last setting for consistent use.

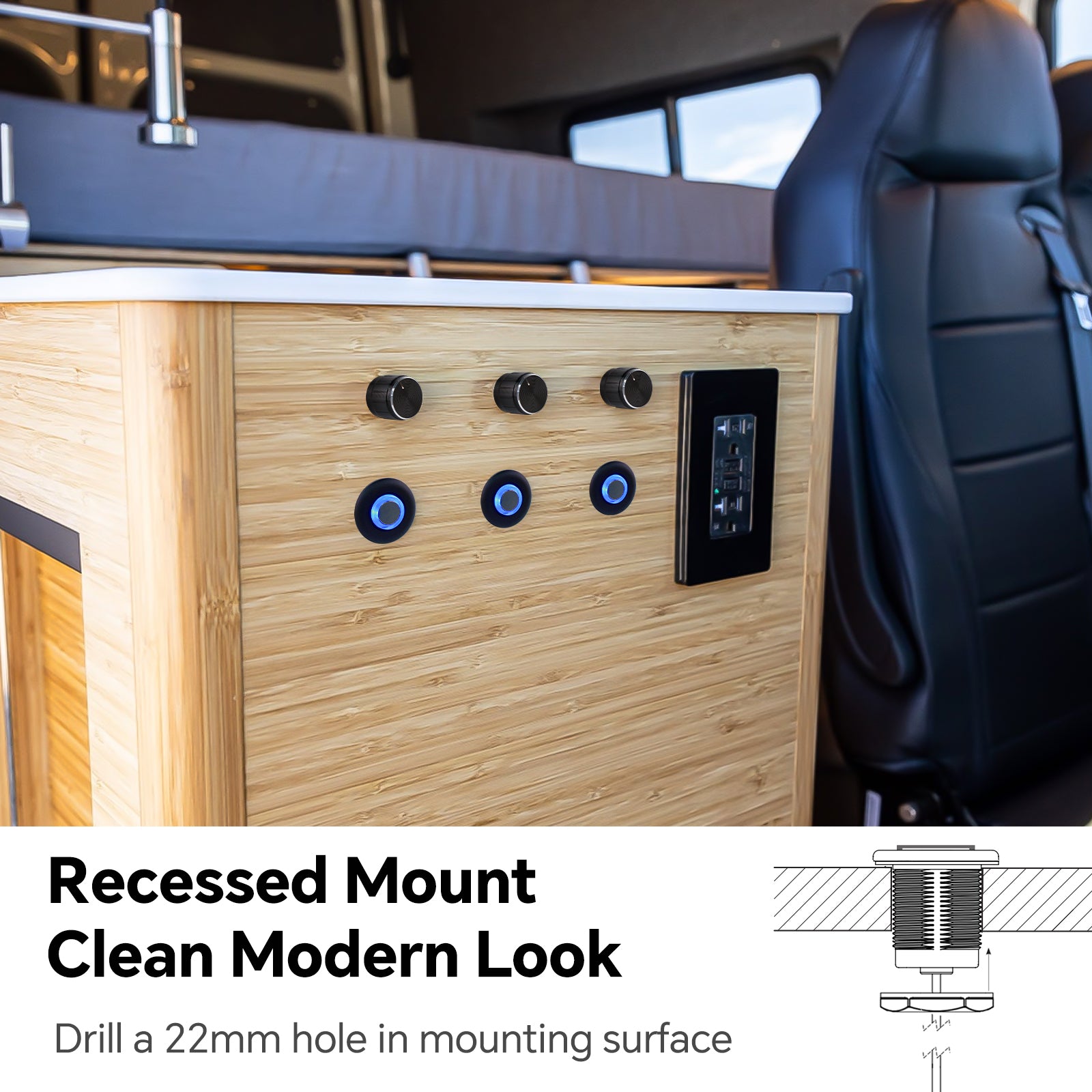

Designed for clean, low-profile installation, it fits into a standard 7/8" (22mm) recessed hole, making it ideal for under-cabinet lighting, custom control panels, or any space where a sleek, modern look is desired.

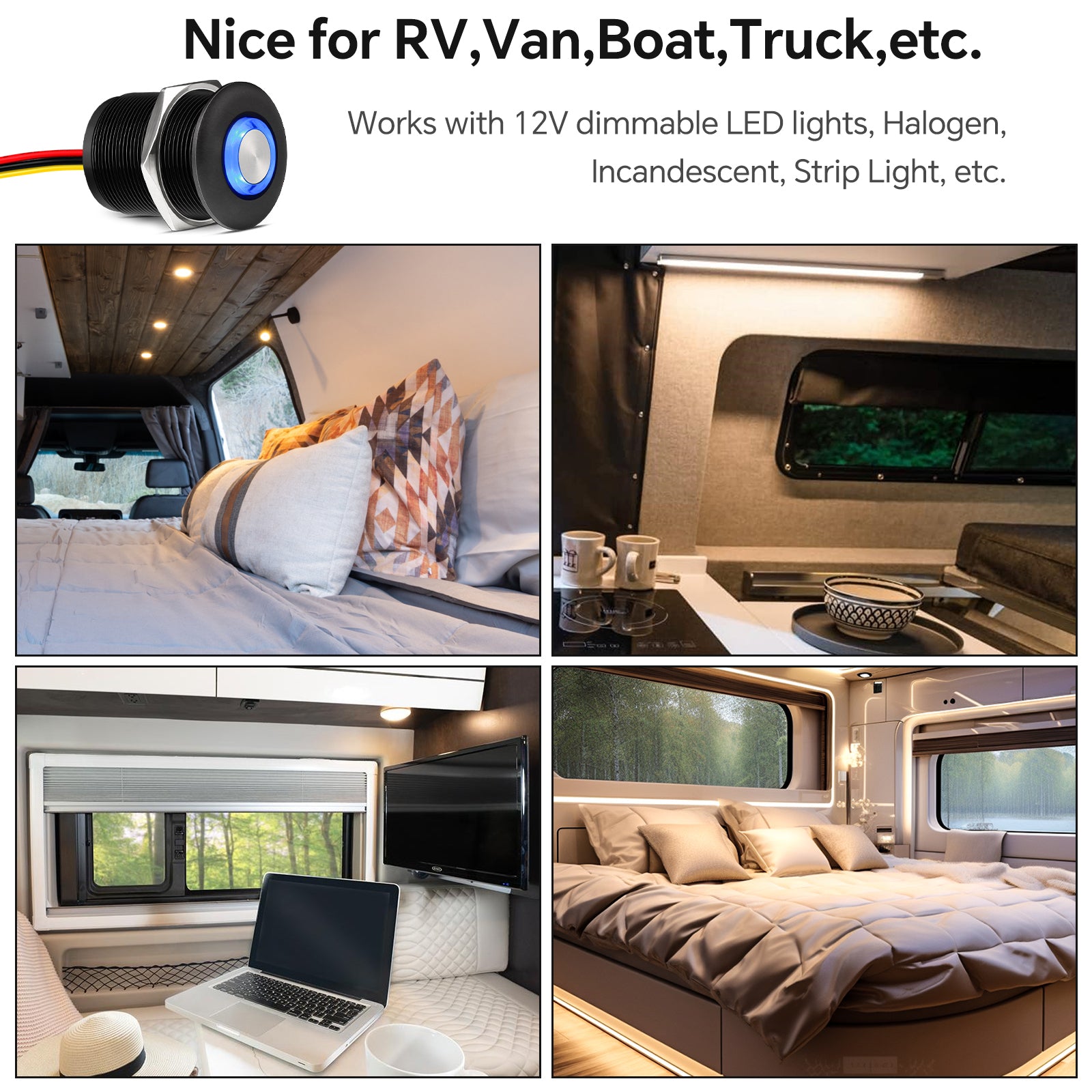

Compatible with 12V DC systems (up to 6A), it works flawlessly with halogen, incandescent, and non-regulated LED fixtures, including strip lights—perfect for RVs, boats, trucks, ATVs, and other 12V applications.Widely used in campervan, boat, truck, caravan, etc. interior lighting or anywhere 12 volt DC power is present.
Specification:

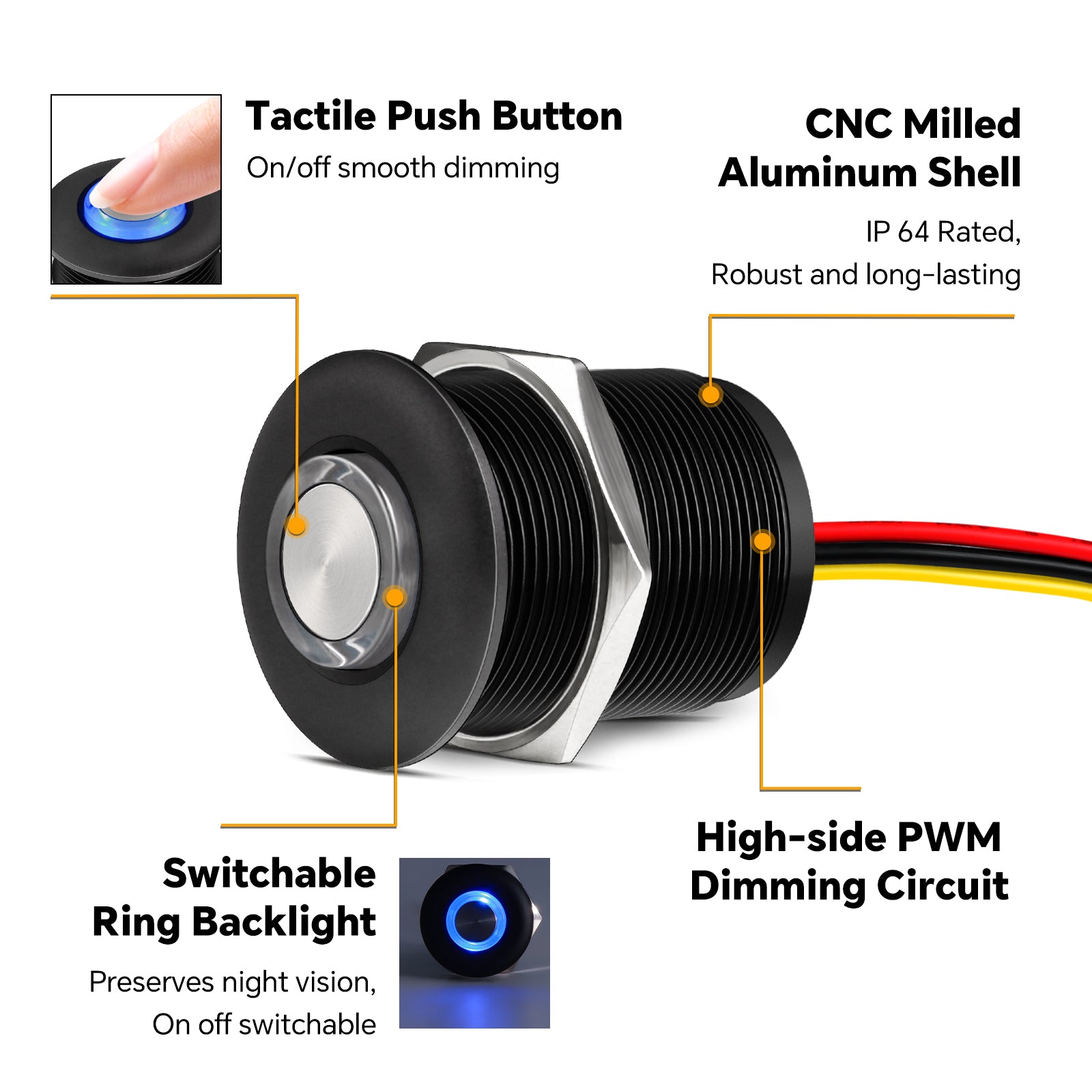

Enclosure Material: CNC milled aluminum
Operation Voltage: DC10V or DC16V
Output Current: Max 6 Amps
Dimming Type: Pulse Width Modulation (PWM)
Memory Function: Saves the last brightness setting
Blue Backlight: On off switchable

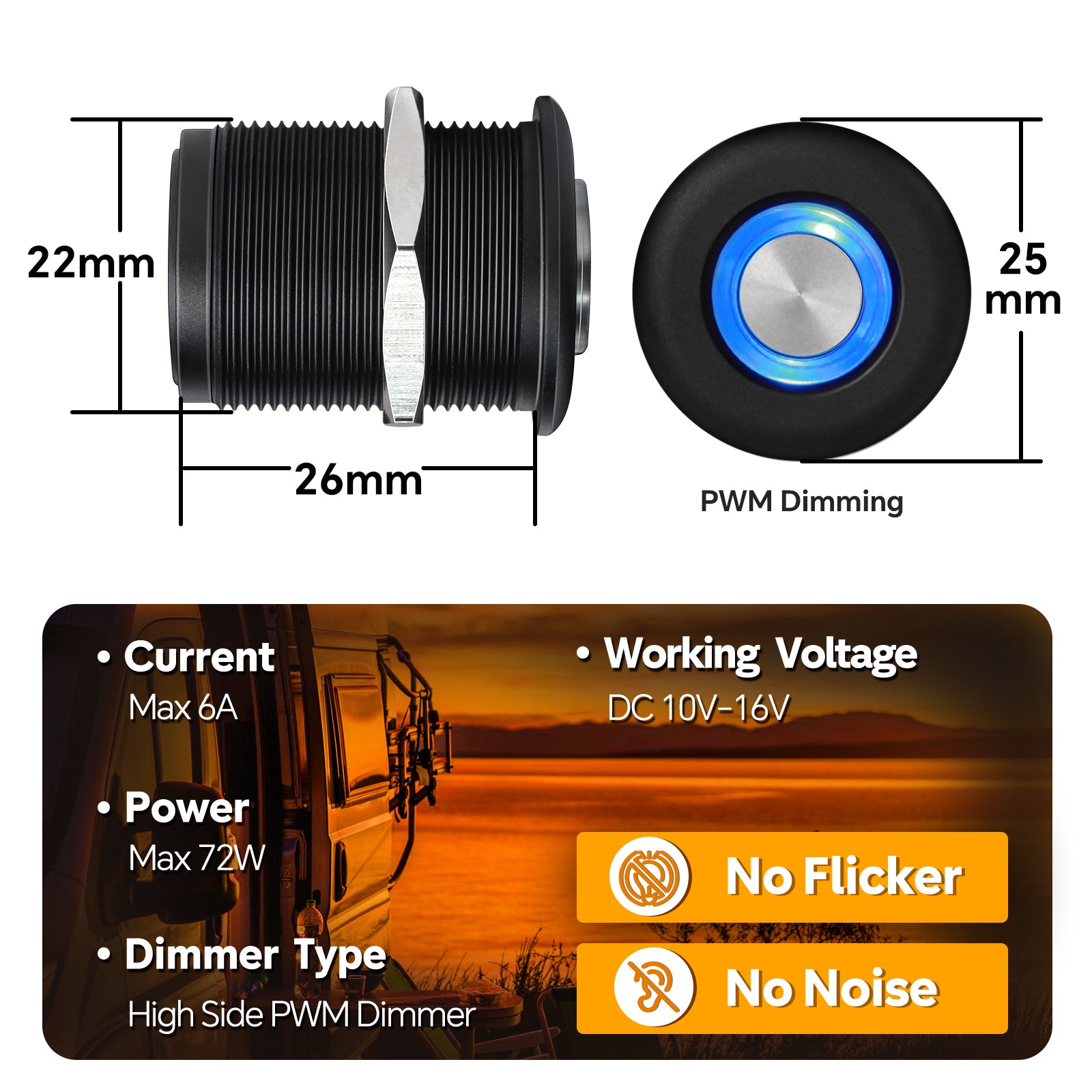

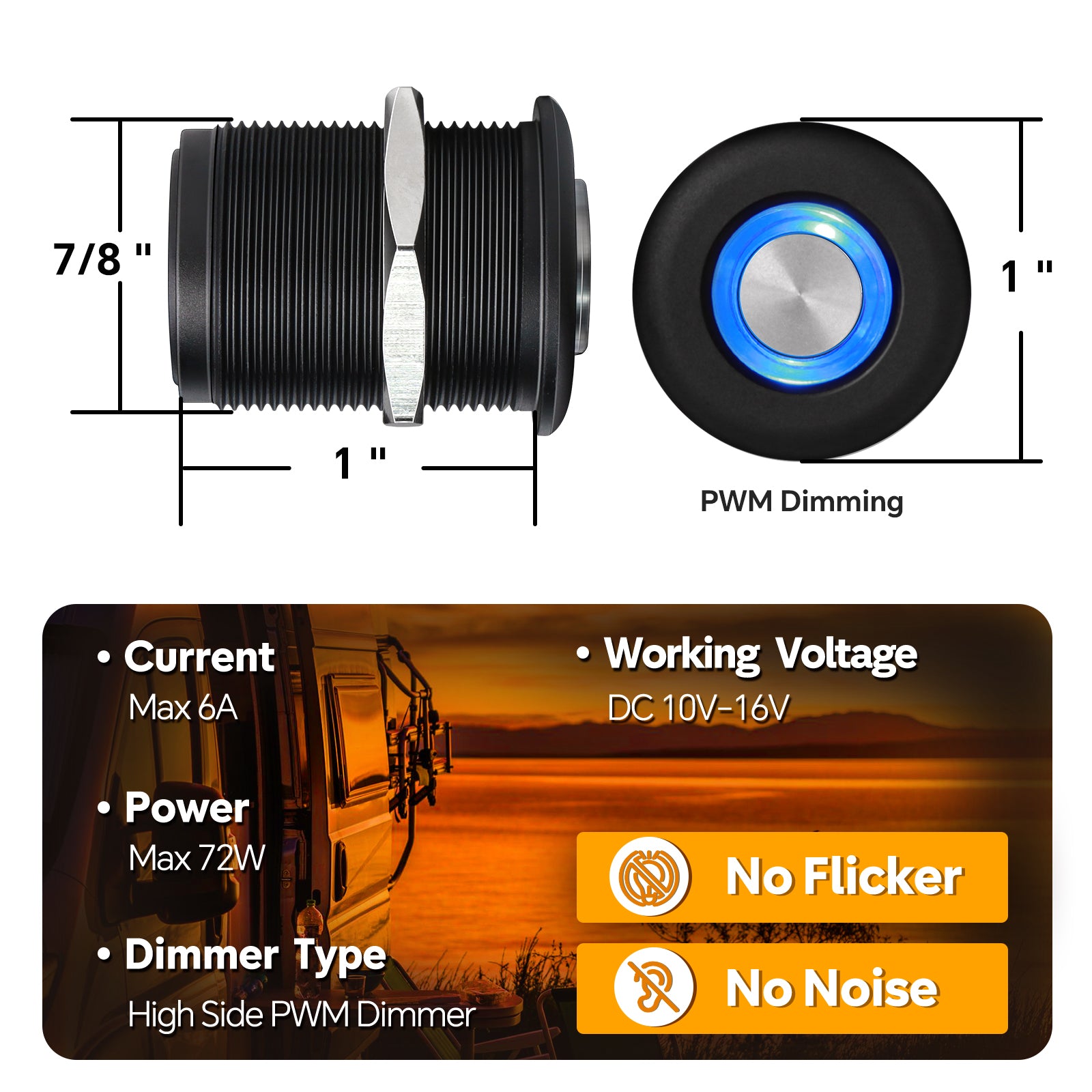

Dimmer Size: 22mm x 25 mm
Installation Depth: 25mm
Drill Hole Diameter: 22mm
IP rating: IP 64
Application: Indoor use
Easy to Use:
1. Short press to turn on light.
2. Press and hold switch to adjust brightness smoothly.
3. Short press again to turn off light.
Blue Ring Light
When the light that the dimmer controlled is off status, long press button to active blue back light on, long press again to switch off red ring light.
NOTES:
This dimmer has brightness memory function, it will automatically keep the same brightness as last time when turn on light next time.
Some LED lights are not dimmable. Prior to installation, please make sure the LED light is dimmable, otherwise dimmer is not applicable.
