12V PWM LED Dimmer Switch 15A 180W, Push On Off, Rotary Knob Dimming,12V 24V Light Dimmer for RV Boat Truck Camper Van Trailer Light Fixture, LED Strip Lights (Black Panel)

Regular price ~~$32.00~~ $24.00 Sale

High efficiency PWM stepless dimming and memory function, it provides smooth brightness adjustment from 5% to 100%, quiet and flicker-free. Press knob to switch on off, rotate knob to adjust brightness

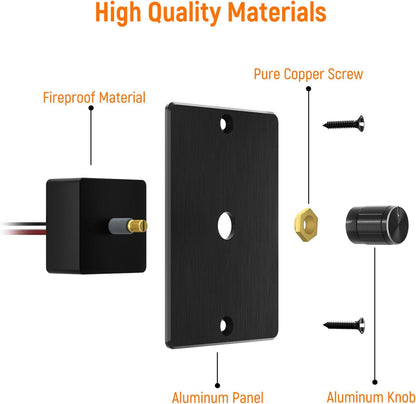

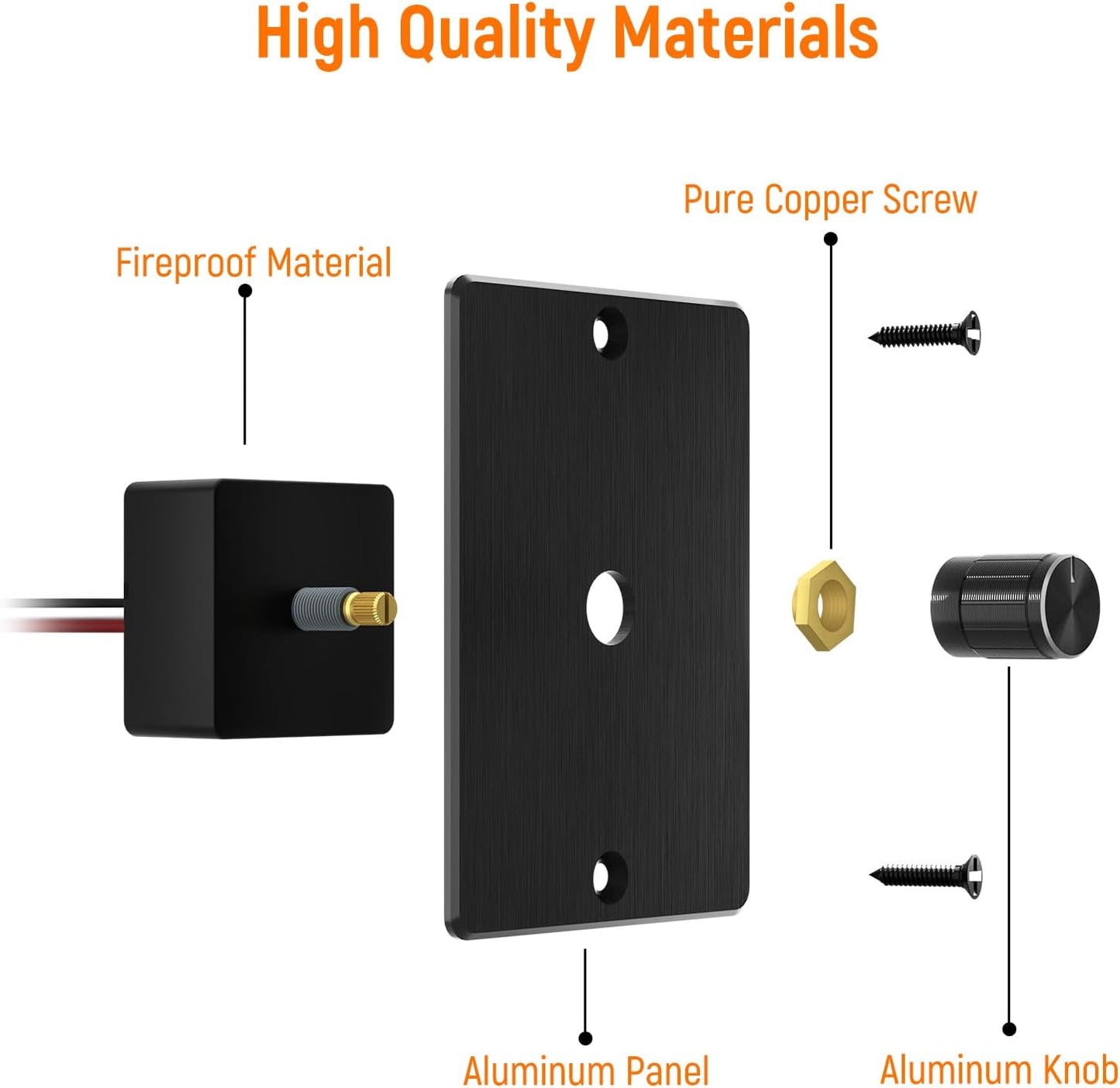

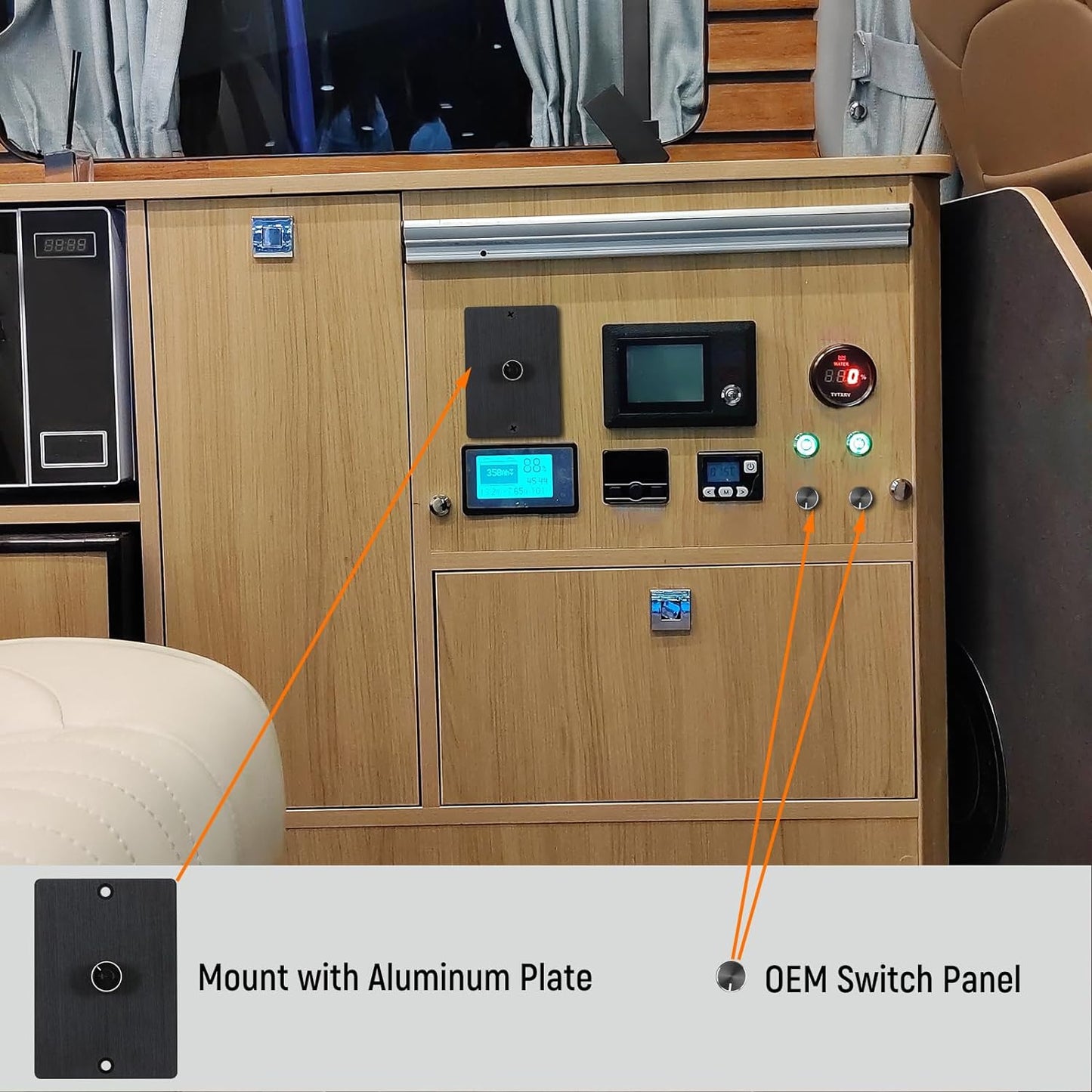

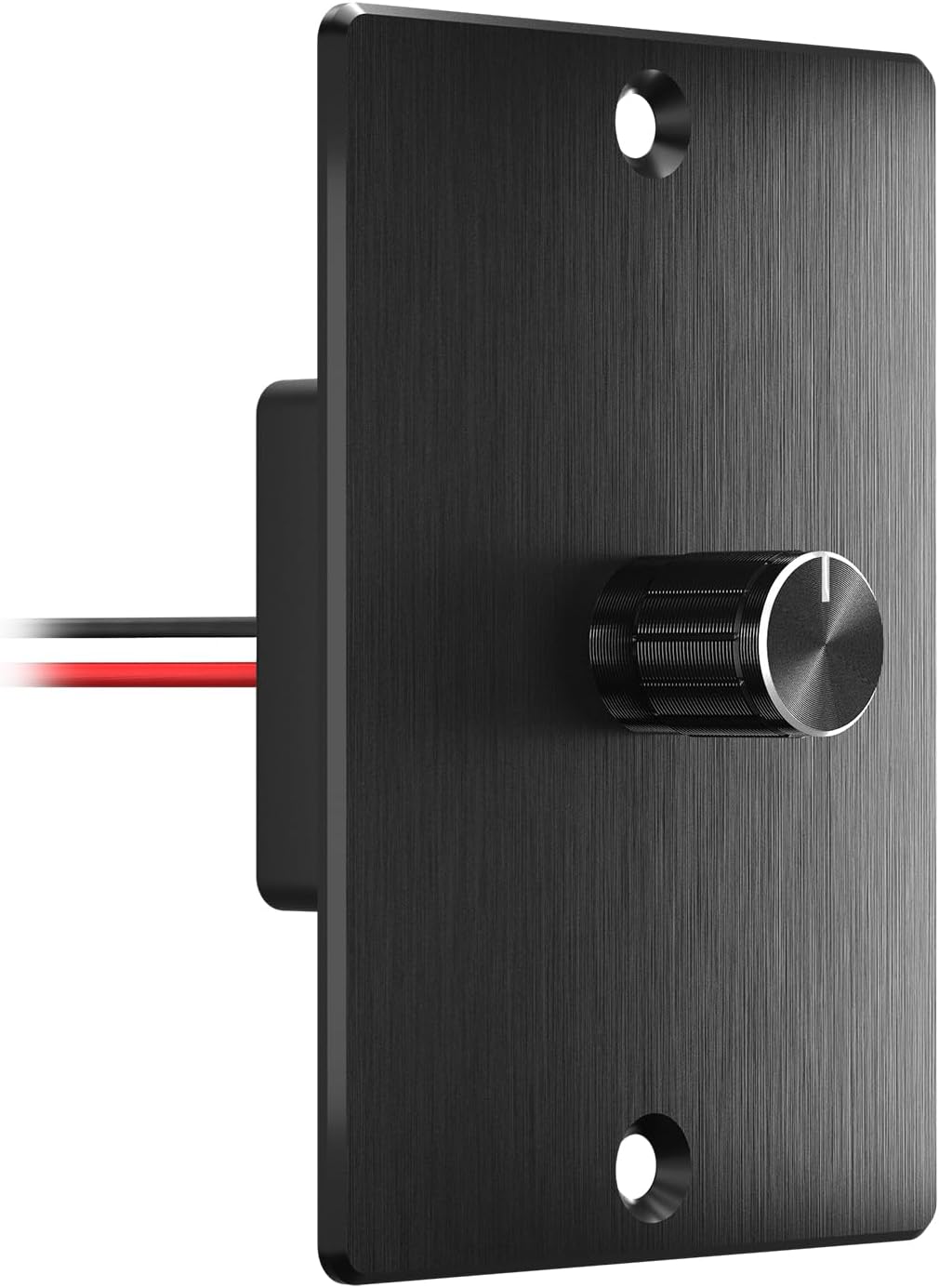

Full aluminum decorative faceplate luxury texture finish, 3.5” (Length) * 2.5” (Width), flushes with mounting surface and clean modern look after installation

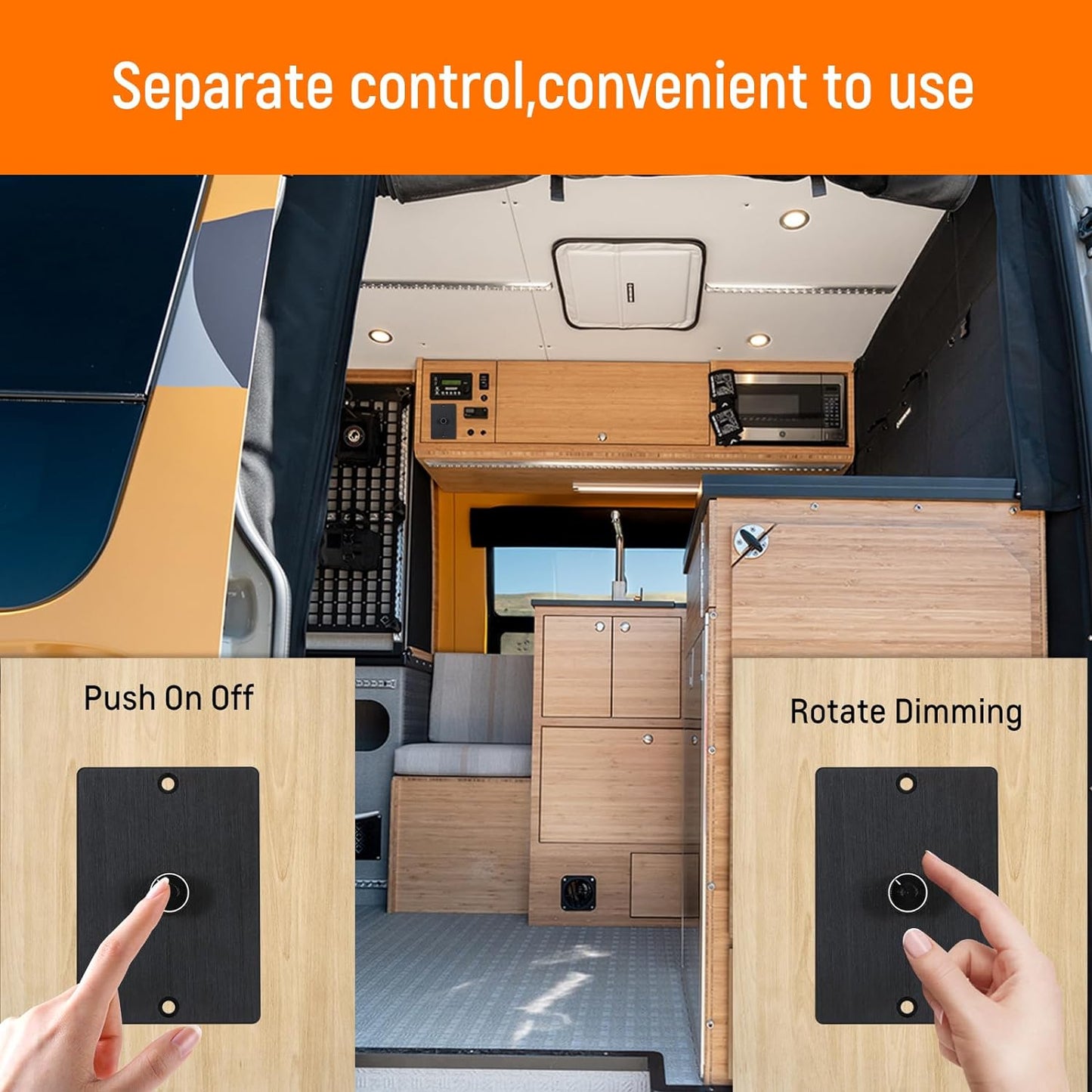

Separate Controls - Push on and off (remember brightness level),rotary dimming,very convenient.
Rated Max 15A with electric surge protection design, works with DC12V and DC24V circuit. Dims up to 180 watts (15A@12V, 7A@24V) of incandescent, halogen, dimmable LED lighting
Package includes: dimmer with aluminum front plate, 2 screws and quick start instructions. Engineered in California with 5 years warranty

Brand	Obeaming
Working Voltage	DC12V-24V
Max Rated Current	15 Amps at 12V system \| 7.5 Amps at 24V system
Max Wattage	180W
Dimmer Type	Low side PWM type
Compatible	LED lights, incandescent, halogen

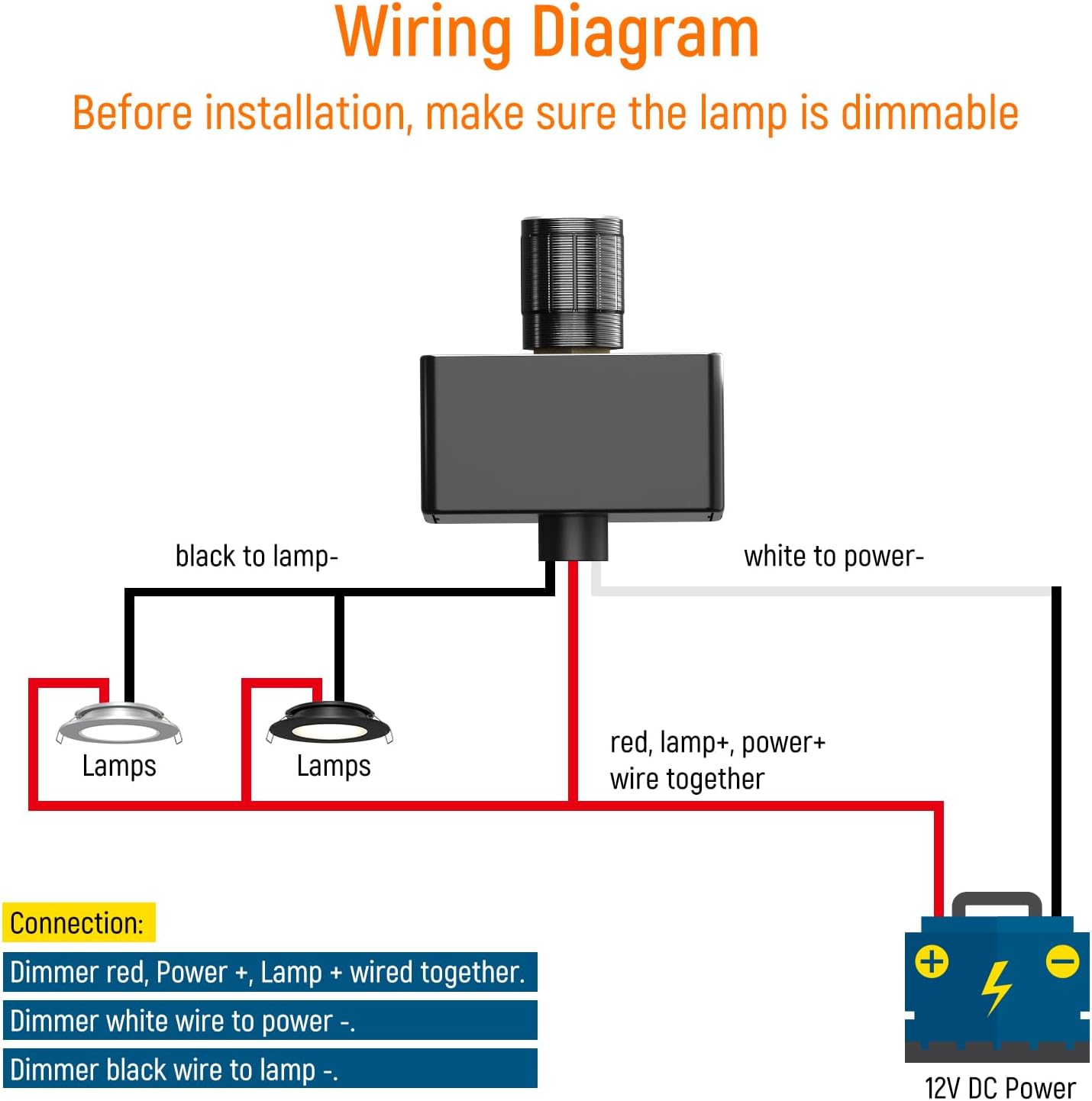

Wiring	3-wires
Switch Type	Push On Off, Rotary Knob Dimming
Switching Feedback	Faint ticking sound when on and off
Cutout	1-5/8” x 1-5/8” x 7/8" (Depth)

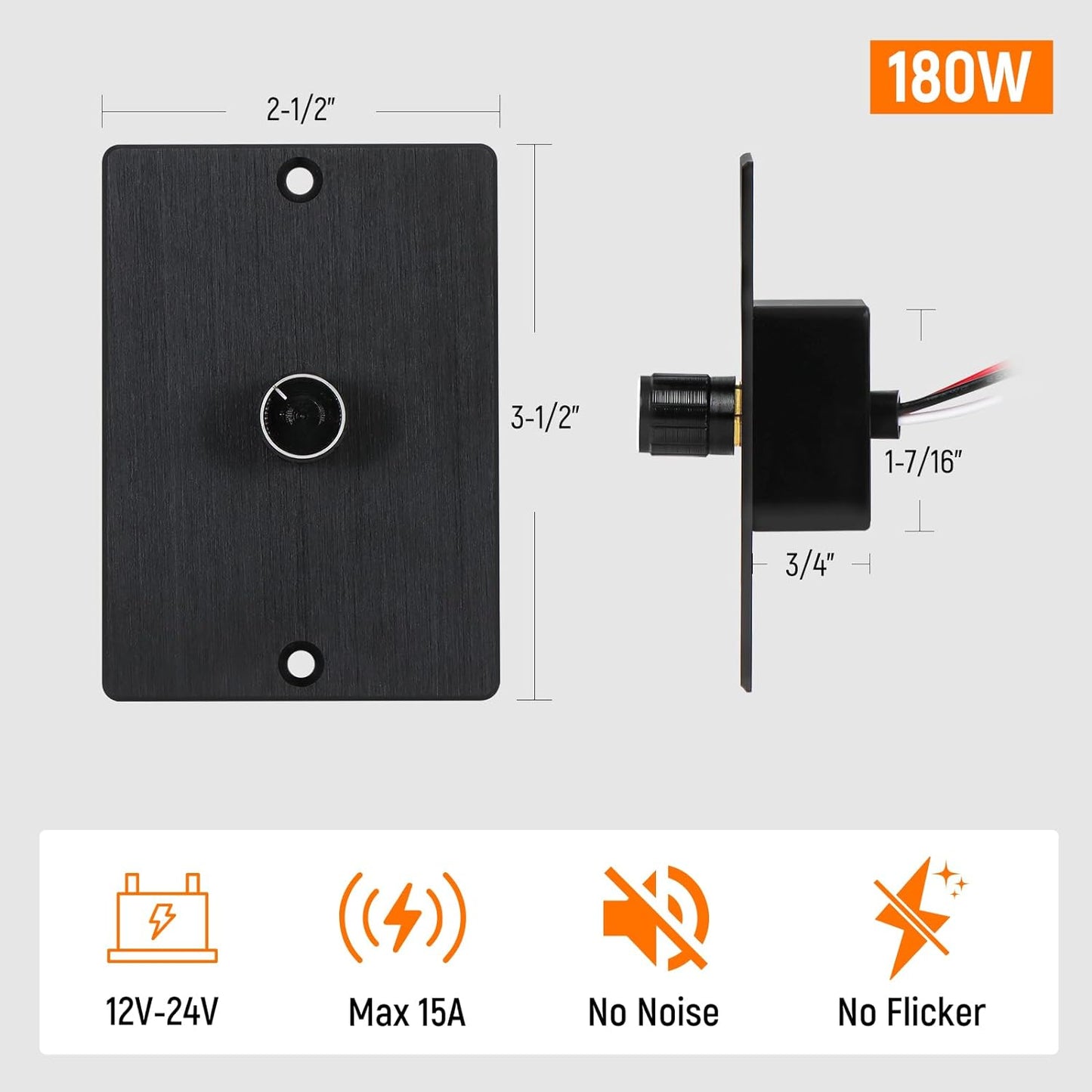

Front Plate Size	3-1/2" (W) x 2-1/2" (L)
Size	2-1/2"(L) x 1-5/8”(W) x 3-1/2" (H)
