12V/15A PWM LED Low-Side Dimmer Switch Silver
12V/15A PWM LED Low-Side Dimmer Switch Silver
Couldn't load pickup availability
This premium dimmer switch features high-efficiency PWM technology for smooth, flicker-free brightness adjustment from 5% to 100%. The intuitive control combines push-button on/off operation with rotary dimming - simply press the knob to toggle power (with brightness memory function) and rotate to fine-tune lighting levels.

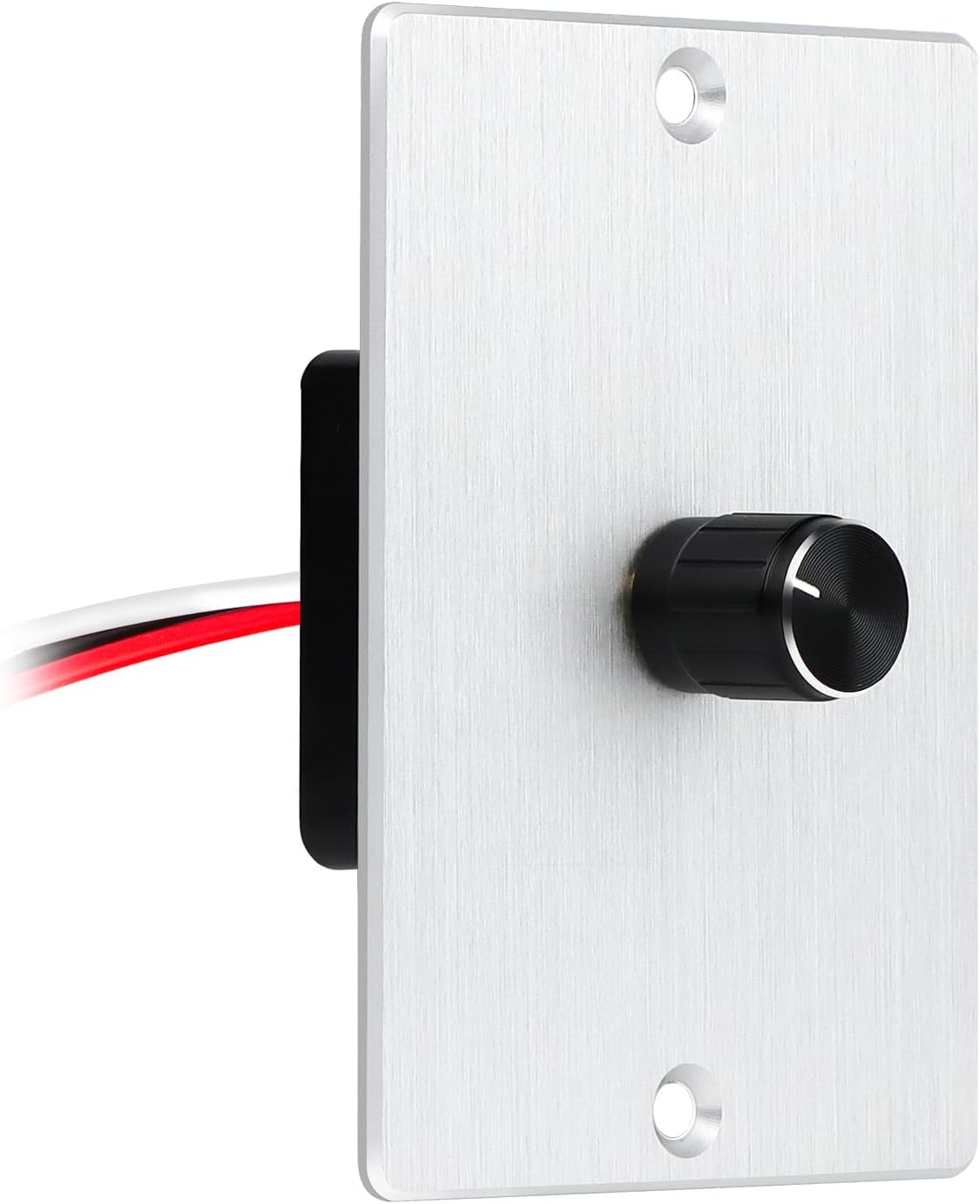

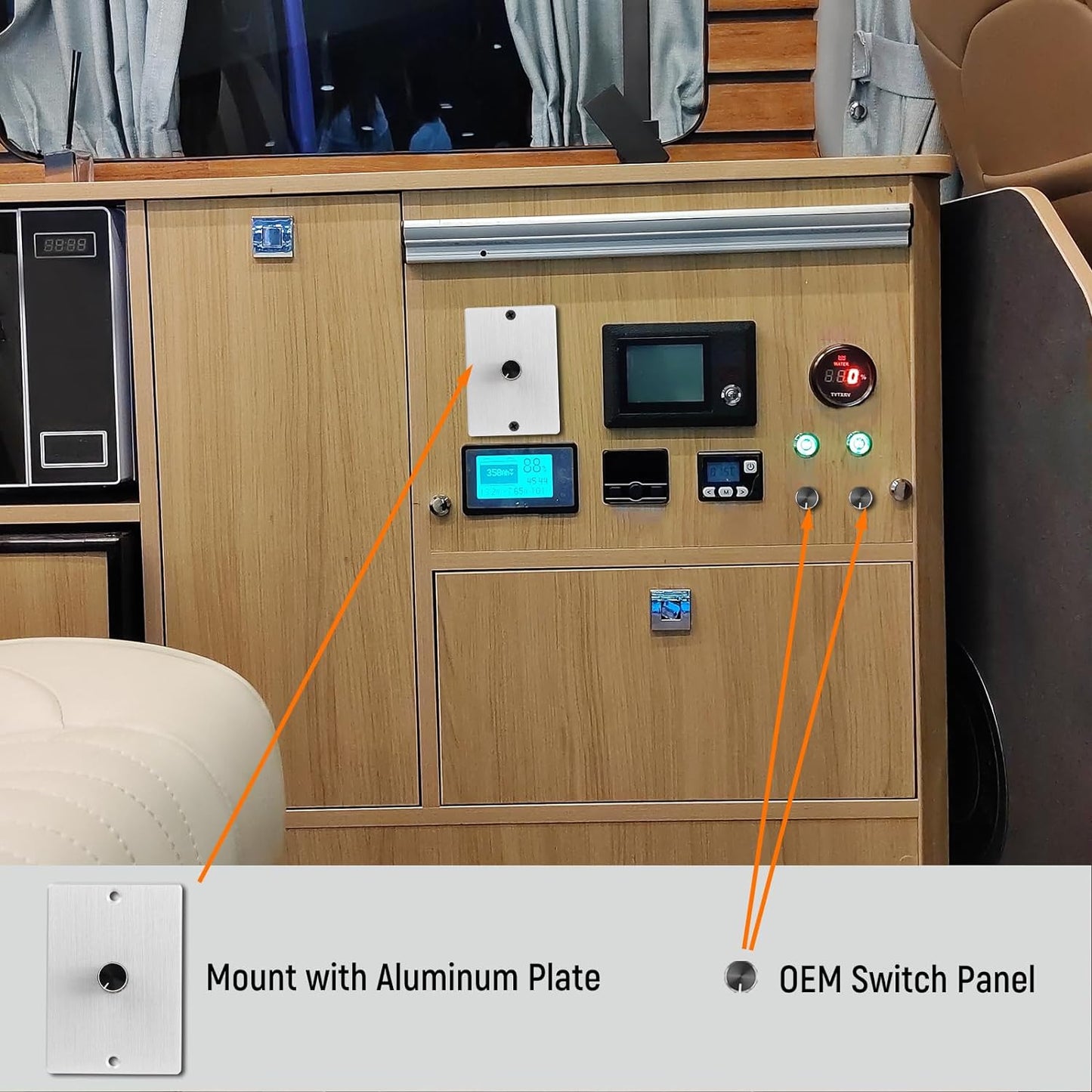

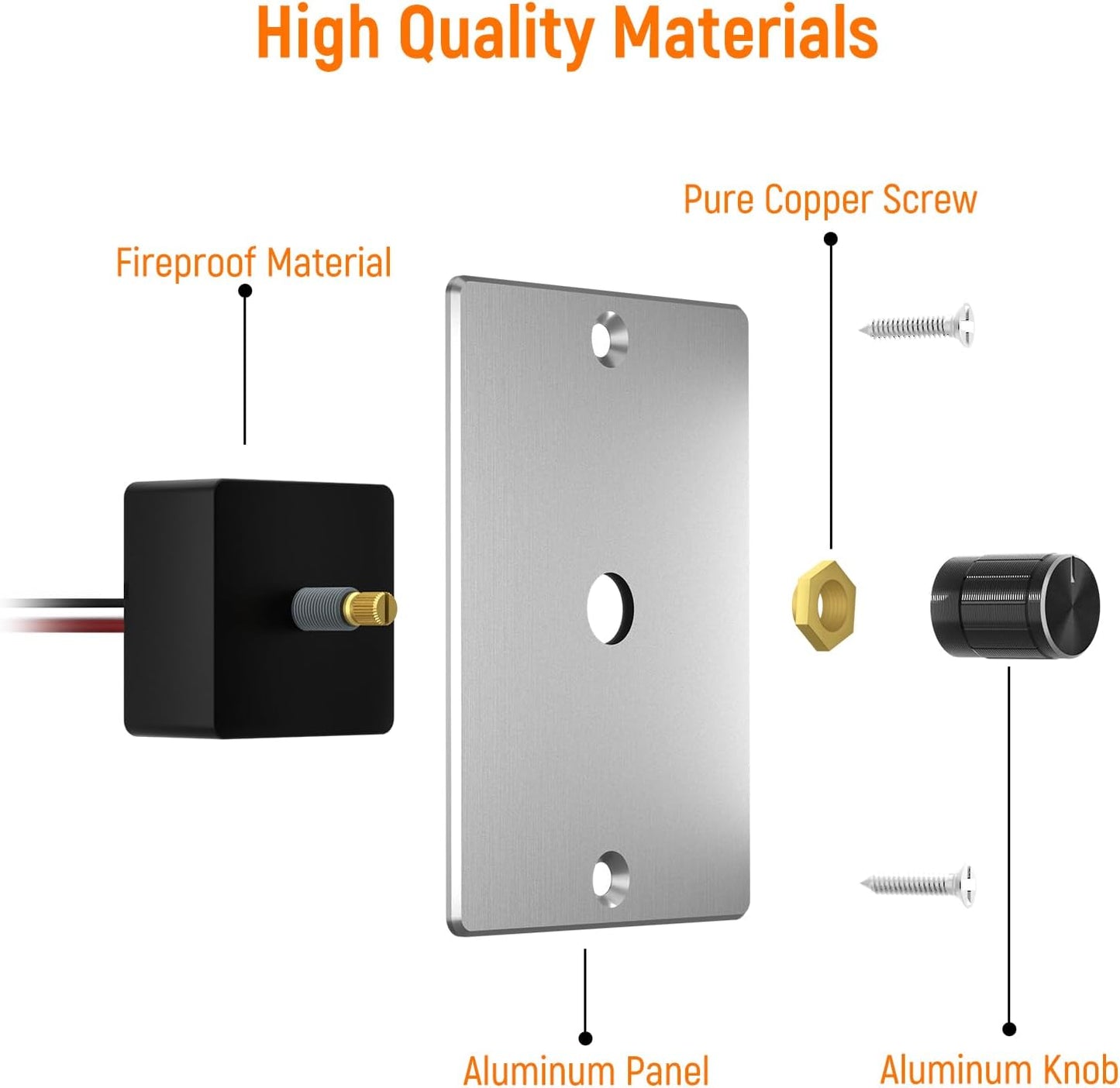

The 3.5"×2.5" aluminum faceplate delivers both luxury aesthetics and durability, mounting flush for a sleek, modern appearance. Designed for versatile 12V/24V systems, it handles up to 180W (15A@12V or 7A@24V) of incandescent, halogen, or dimmable LED lighting while incorporating surge protection for enhanced safety.

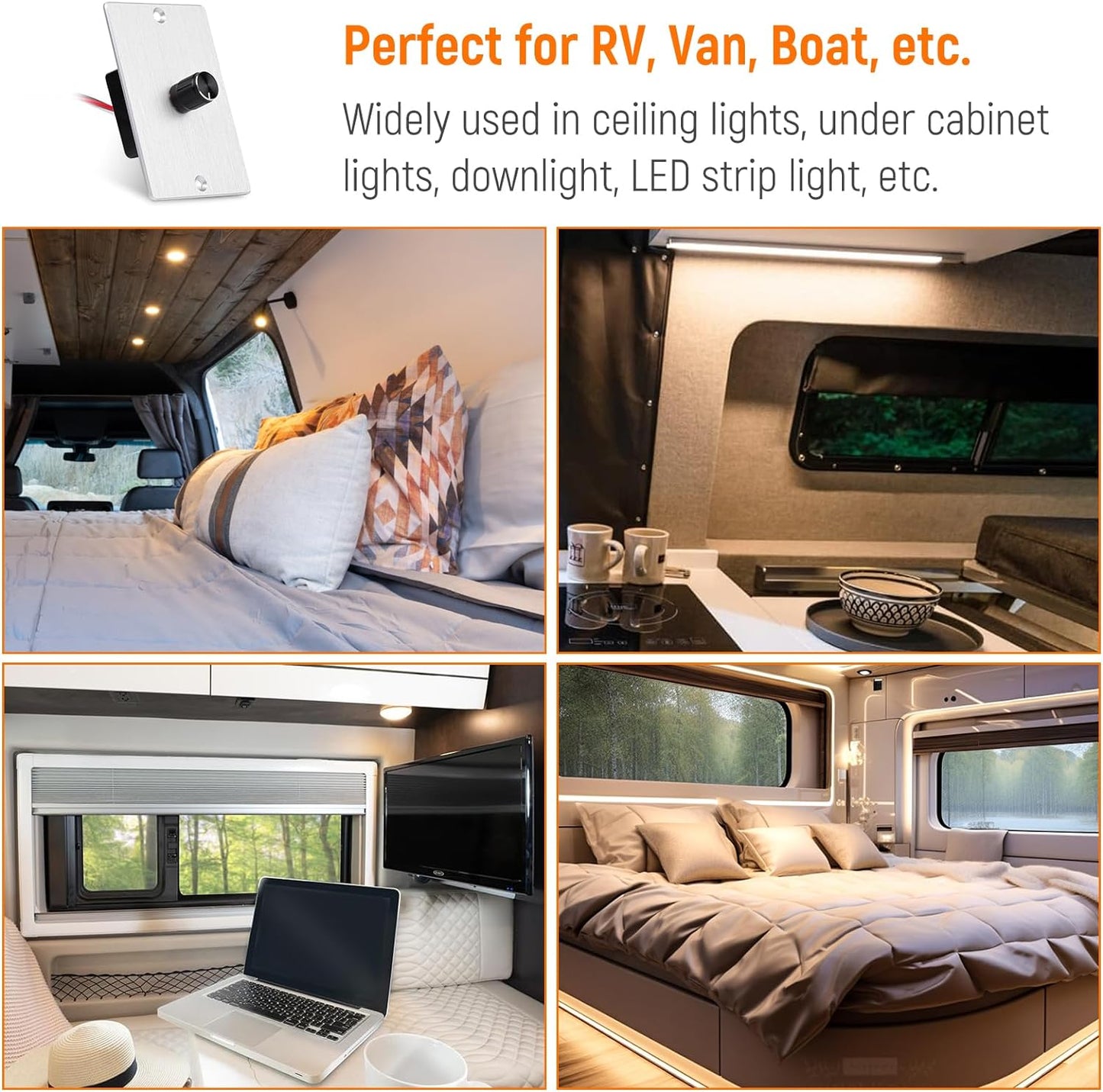

Complete with mounting screws and quick-start guide, this California-engineered dimmer comes backed by a 5-year warranty. Its combination of premium materials, advanced functionality, and robust 15A capacity makes it ideal for demanding automotive and marine applications.
Technical Specifications
| Brand | Obeaming |
| Working Voltage | DC12V-24V |
| Max Rated Current | 15 Amps at 12V system | 7.5 Amps at 24V system |
| Max Wattage | 180W |
| Dimmer Type | Low side PWM type |
| Compatible | LED lights, incandescent, halogen |

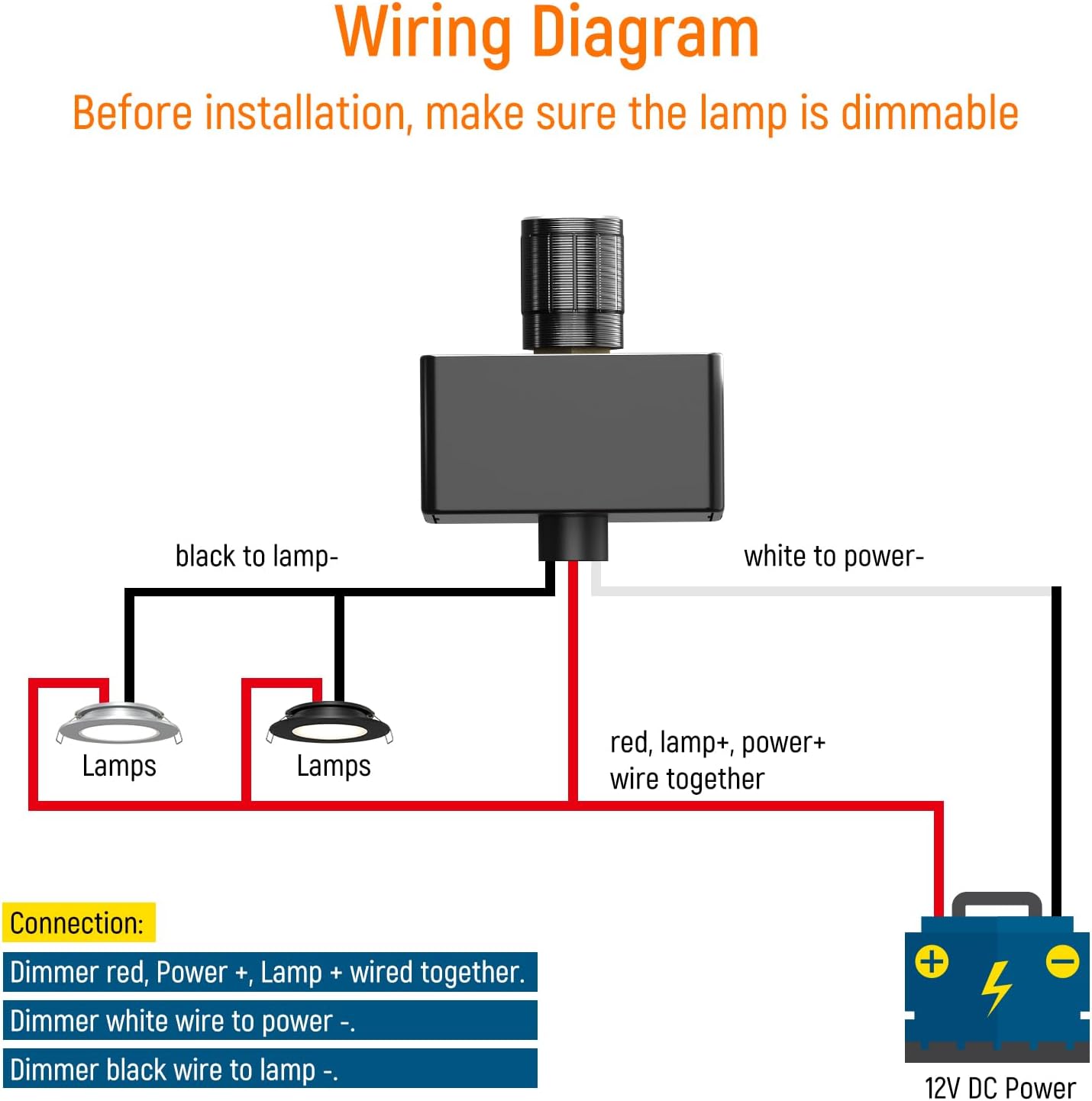

| Wiring | 3-wires |

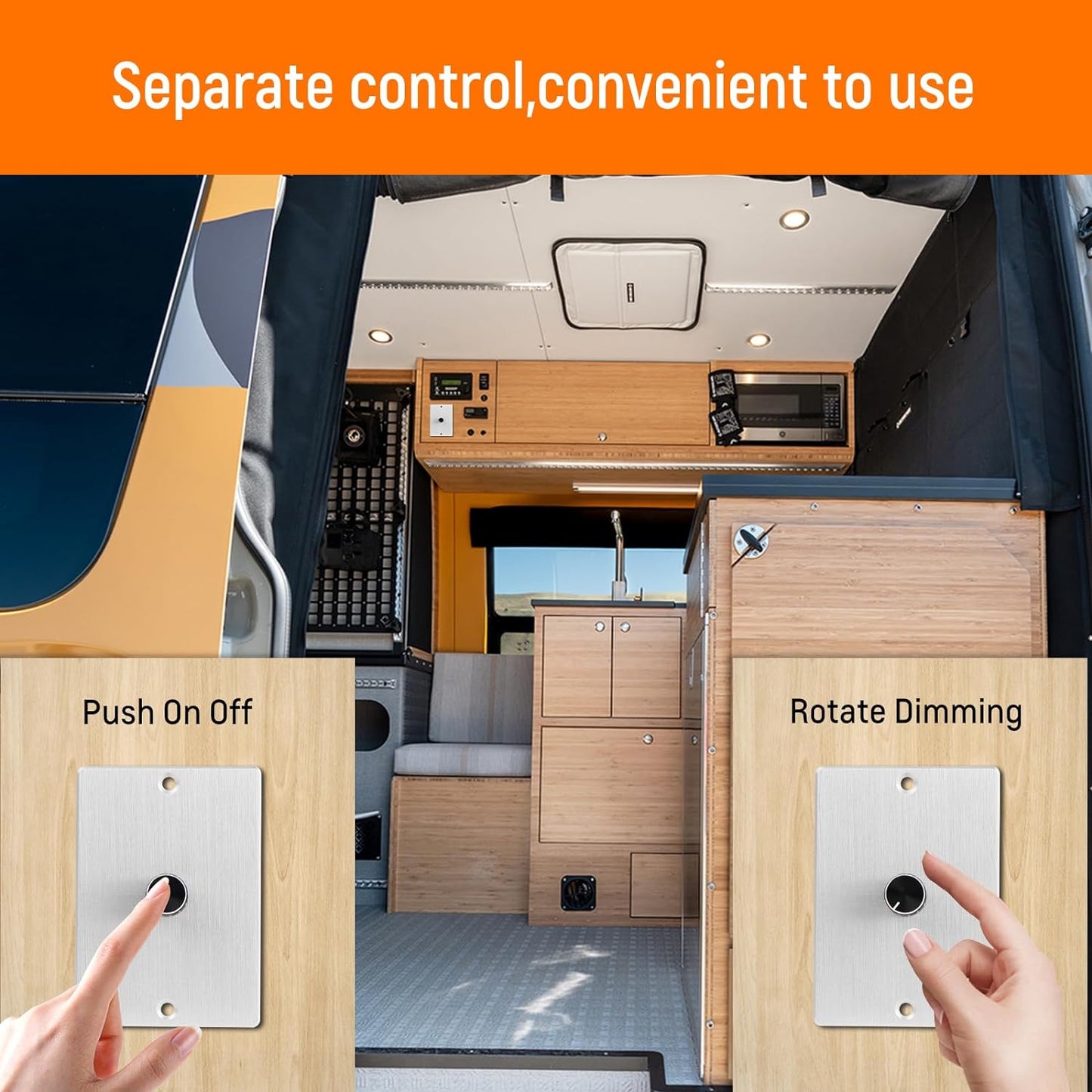

| Switch Type | Push On Off, Rotary Knob Dimming |
| Switching Feedback | Faint ticking sound when on and off |
| Cutout | 1-5/8” x 1-5/8” x 7/8" (Depth) |

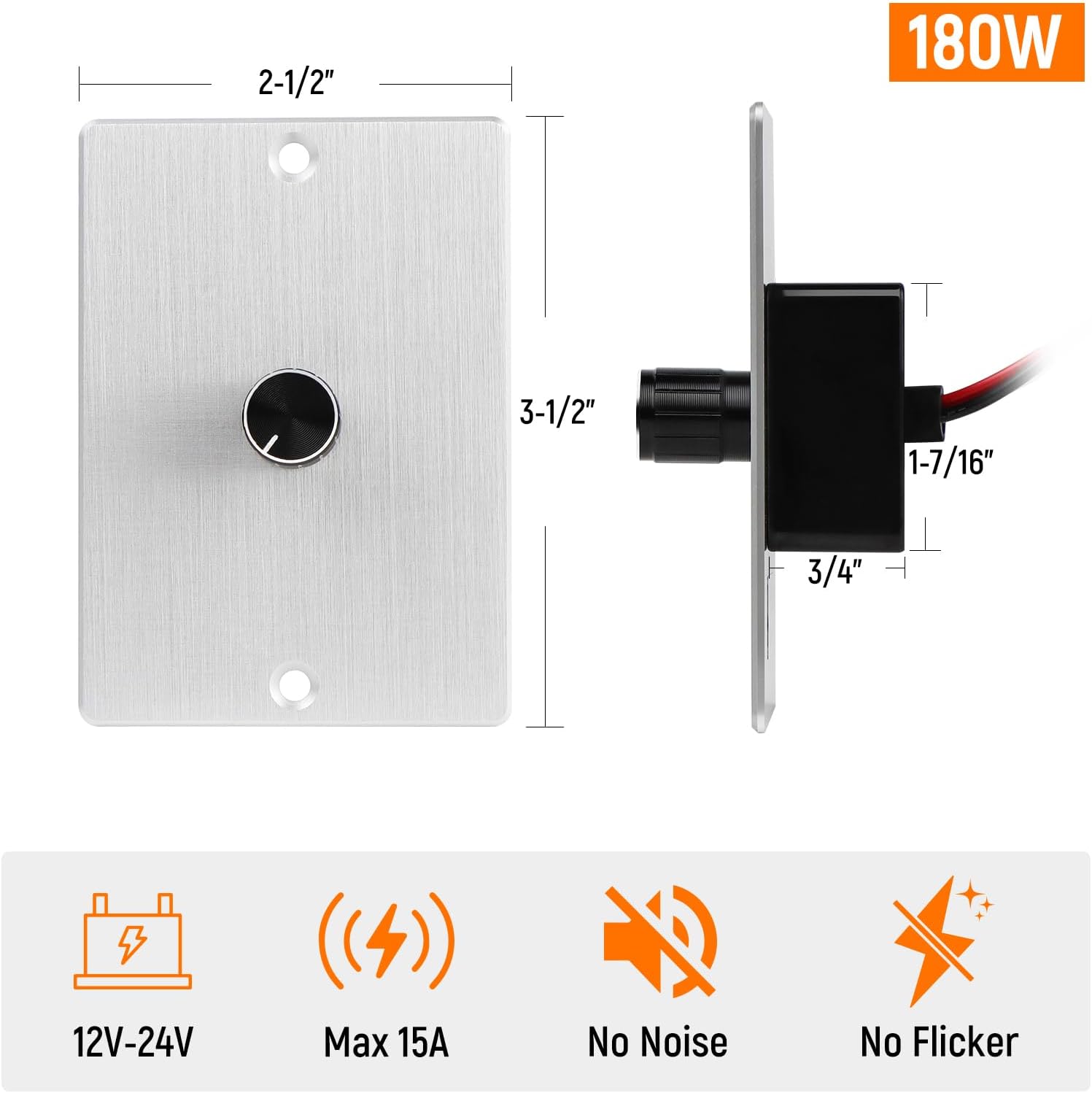

| Front Plate Size | 3-1/2" (W) x 2-1/2" (L) |
| Size | 2-1/2"(L) x 1-5/8”(W) x 3-1/2" (H) |
Share
Material
Material
Aluminum
Product Specification
Product Specification
12V/24V
