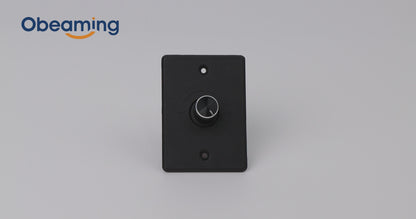

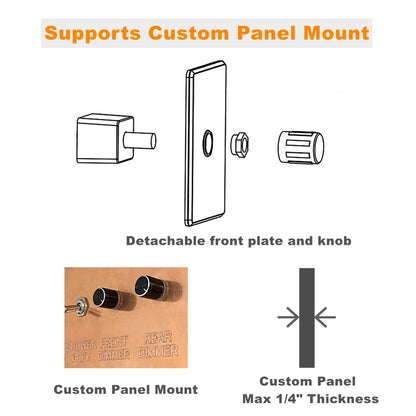

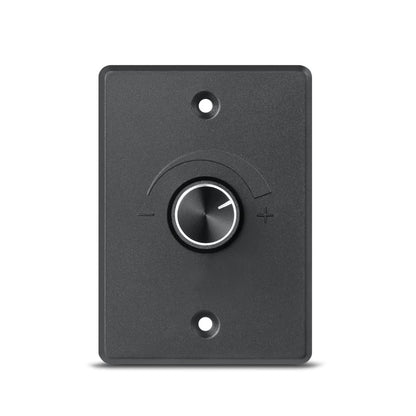

This DC12 dimmer is rated for 6 amps and works with 12V circuits, compatible with incandescent, halogen and LED lighting. It features full-range PWM dimming control (0-100% flicker-free) to reduce heat and improve energy efficiency. The clear 4-wire configuration includes positive/negative input and output wires for easy hookup. Simply rotate the knob to smoothly adjust brightness from full to dim, with a click sound when turning off. The detachable front panel and knob allow custom panel mounting.
Important notes:
-
This is a low-side dimmer requiring connection to both light fixture negative and power negative wires. For systems without negative power connection, use a high-side dimmer (Obeaming 4A Dimmer) instead.
-
Use 16-18AWG pure copper wire to minimize circuit losses.
-
Not compatible with lamps containing drivers (DC/AC LED lights, RGB strips).
-
During installation, never connect the black wire to power supply positive.
Product Specifications
Brand: Obeaming
Working Voltage: DC12V-24V
Max Rated Current: 6 Amps at 12V system | 3 Amps at 24V system
Max Wattage: 72W
Dimmer Type: Low side PWM type
Compatible: LED lights, incandescent, halogen
Wiring 4-wires: (need wiring power negative and light fixture negative )
Switch Type: On/off/dimming control
Switching Feedback: Faint ticking sound when on and off

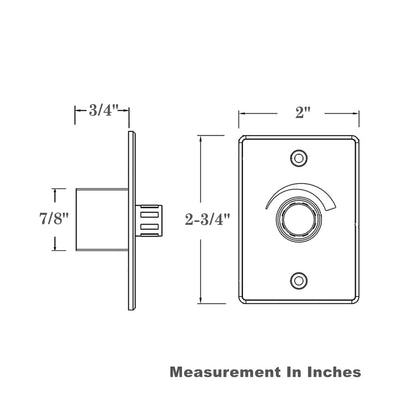

Cutout: 15/16" x 3/4 " x 7/8" (Depth)
Front Plate Size: 2-3/4" (W) x 2" (L)
Size: 13/16”(L) x 15/16" (W) x 1-1/2”(H)
