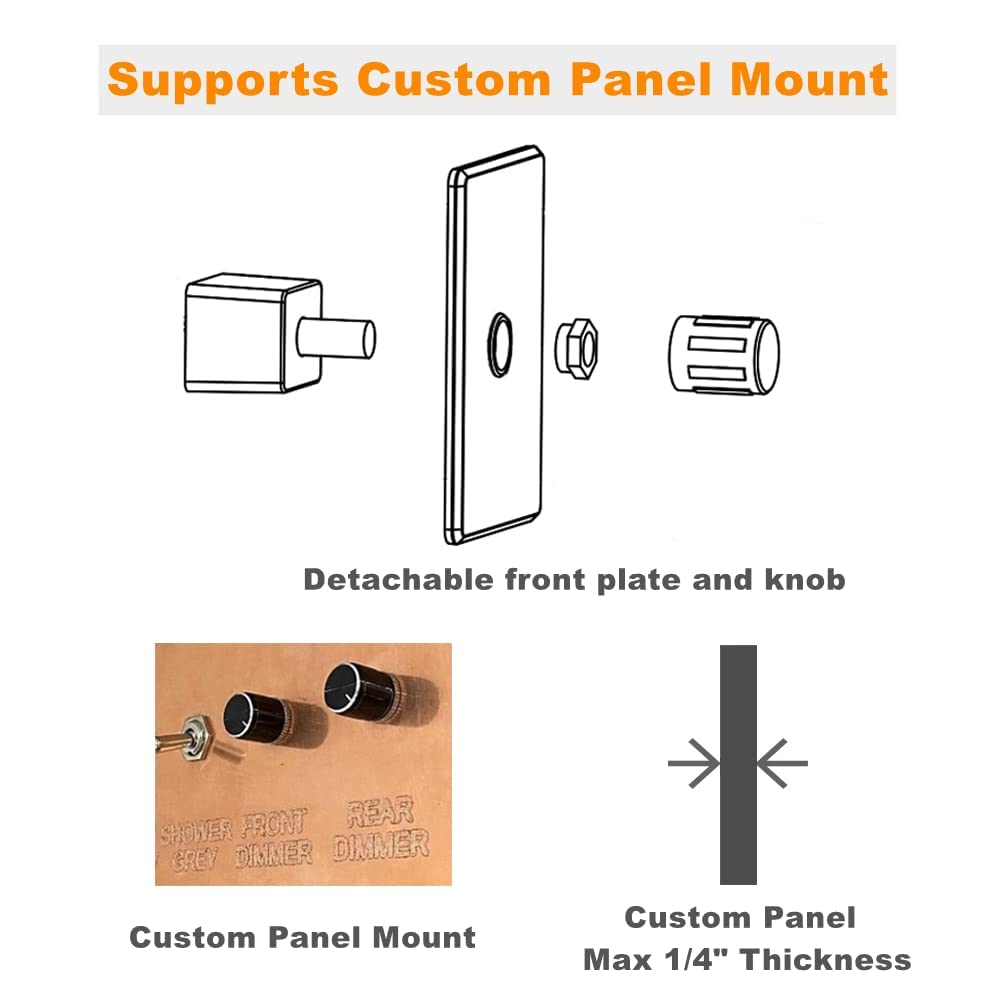

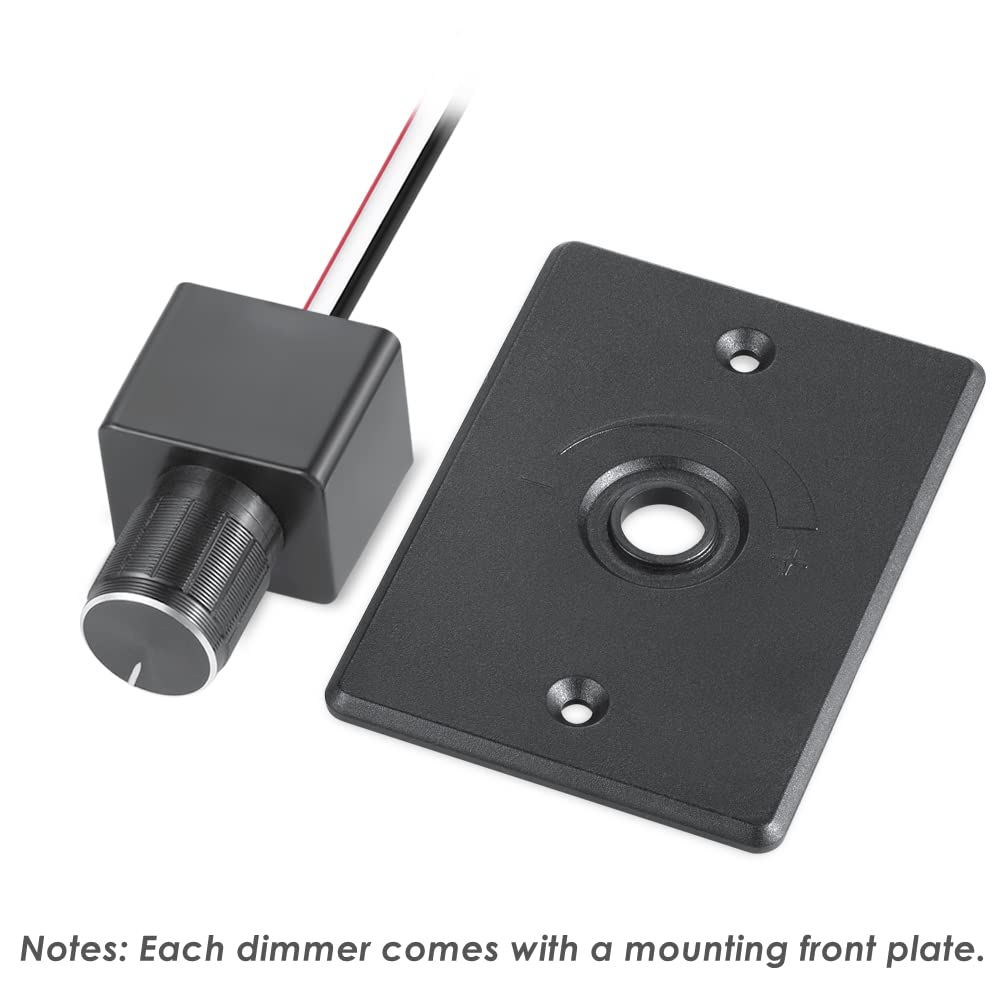

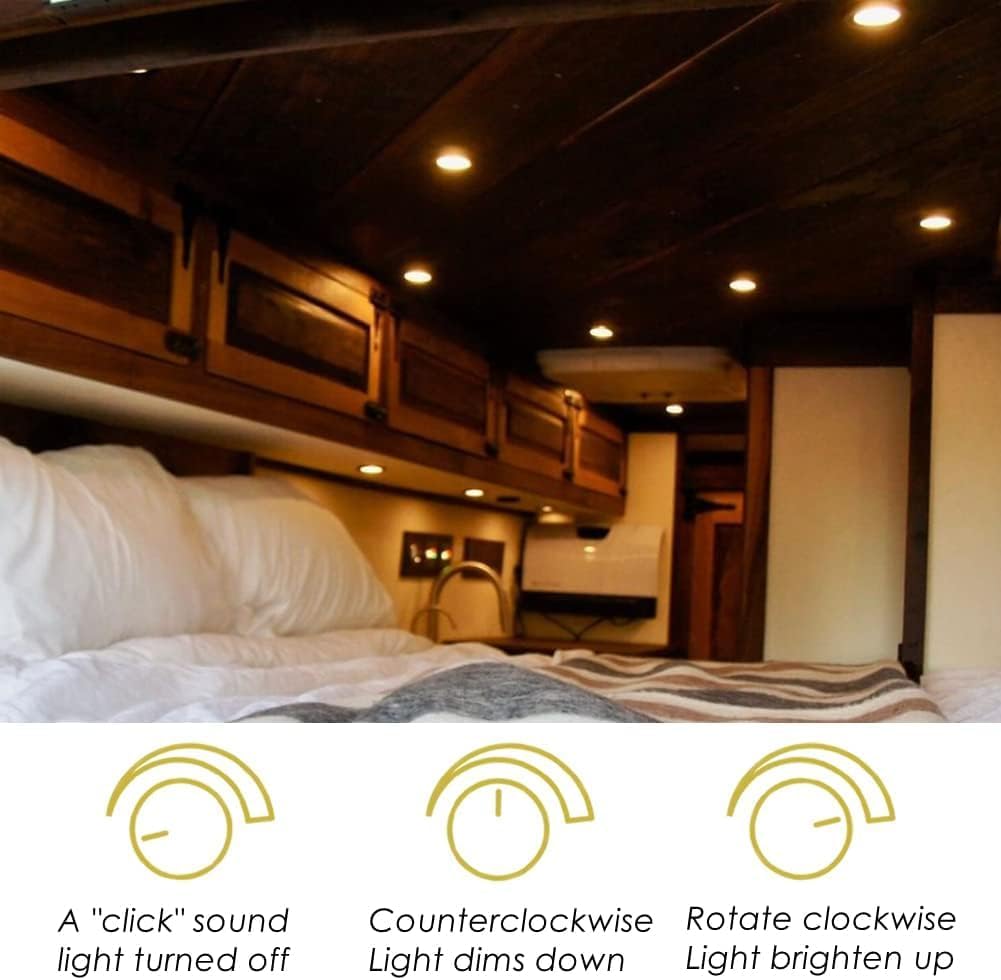

This 12V light dimmer has built-in on/off switch, rotate the knob to turn on lights and smoothly adjust brightness from extra low to high bright. It dims up to 48 watts (4 amps) of LED light fixture, reducing power drain to save auto batteries. Nice for new custom installation or upgrade on/off switch to dimmable control, customize your RV boat lighting ambiance. Advanced high side dimming control helps reduce heat & raise energy efficiency, perfect for RV, cars, boat, ATV, motorcycle. Easy to mount, its mini size easily fits in custom control panel or mount neatly behind front plate (front plate included in box).
| Brand |
Obeaming |
| Working Voltage |
DC12V-24V |
| Max Rated Current |
4 Amps at 12V system | 2 Amps at 24V system |
| Max Wattage |
48W |
| Dimmer Type |
High side PWM type |
| Compatible |
LED lights, incandescent, halogen |
| Switch Type |
On/off/dimming control |

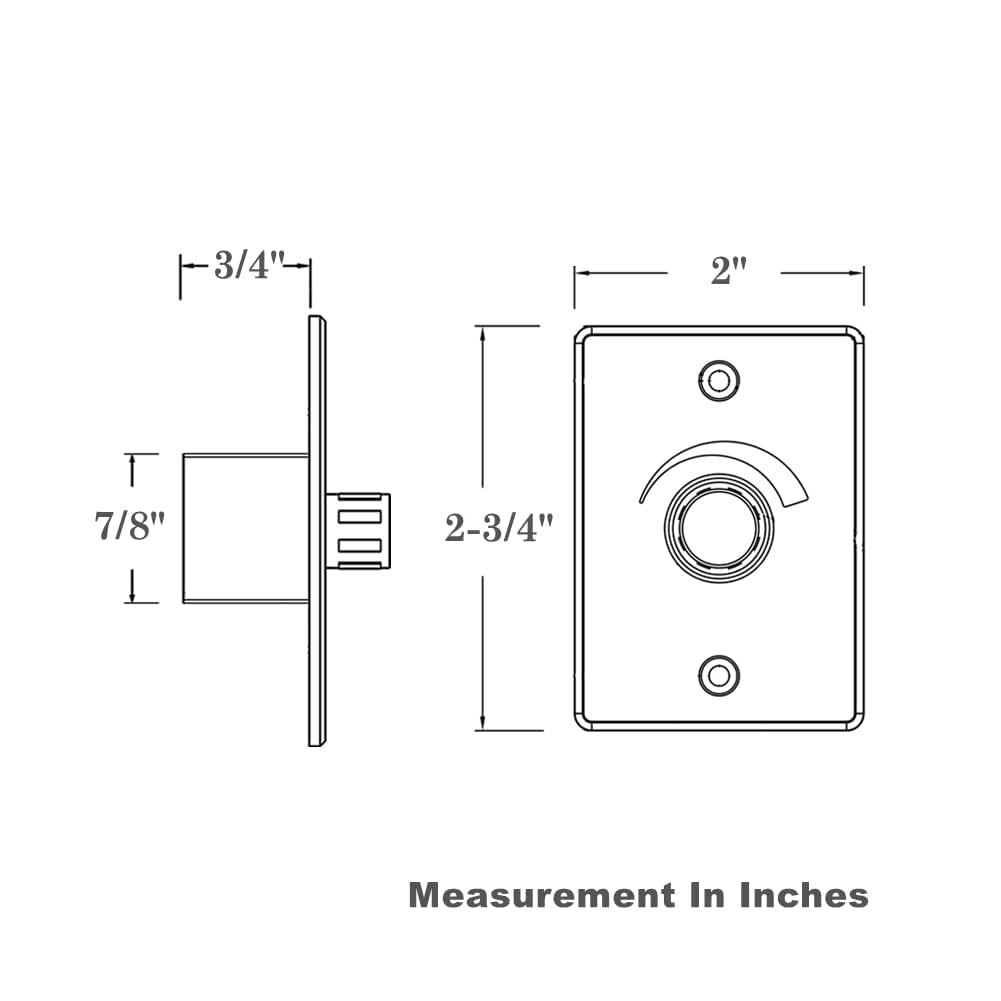

| Cutout |
15/16" x 3/4 " x 7/8" (Depth) |
| Front Plate Size |
2-3/4" (W) x 2" (L) |
| Size |
13/16”(L) x 15/16" (W) x 1-1/2”(H) |
